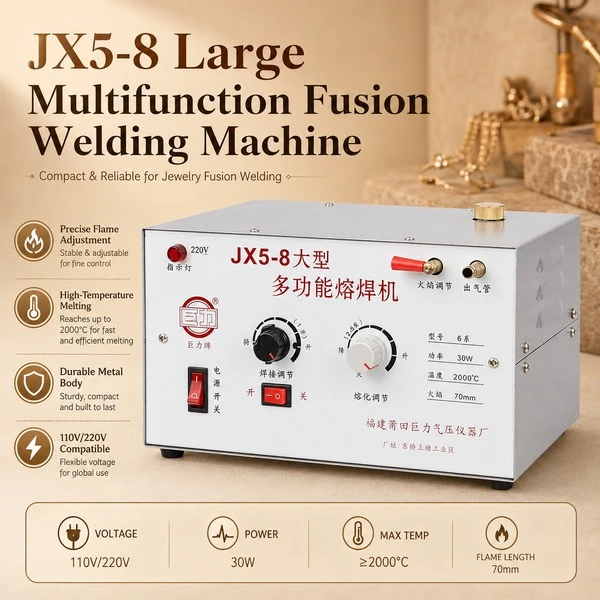

Product Introduction
JX5-8 is the larger fuel-flame unit for repair benches that need stronger heat reserve. Its 0.6 L chamber, 70 mm flame, and 5.5 kg body suit longer heating sessions.
Use it for flame fusion, annealing aid, and repair preparation; it is not an arc welder.
Product Parameters
|
Specification |
Details |
|
Voltage |
110V/220V |
|
Power |
30W |
|
Maximum Temperature |
>2000°C |
|
Machine Flame |
70 mm |
|
Product Size |
260 x 170 x 180 mm |
|
Weight |
5.5 kg |
|
Fuel Type |
White power oil or petroleum |
|
Gasoline Capacity |
0.6 L |
|
Safety Note |
Do not add acid or alkali into the fuel |
Key Features & Advantages
Larger cabinet size gives this model steadier bench presence.
30W power and >2000°C maximum temperature provide stronger heating capacity.
Separate front controls help the operator set output, flame, and airflow without guesswork.

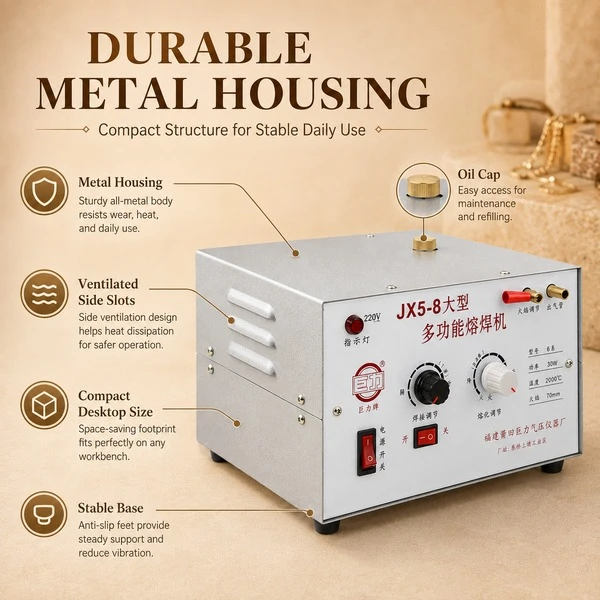

The metal shell, venting, and filling area are arranged for repeated workshop use.
JX5-8 Large Flame Fusion Workflow
Use only the listed fuel. Never pour acid or alkali into the tank.
Fit the suction pipe, oil pipe, oil bottle, funnel, and flintlock parts before ignition.
Raise the flame slowly, then bring the workpiece close after the flame becomes stable.
After heating, shut down and cool the nozzle in open air.
Suitable & Unsuitable Applications
Best for higher-heat gold/silver bench preparation and longer repair heating.
Avoid unattended use, sealed rooms, corrosive fuel additives, structural welding, and fragile stones.

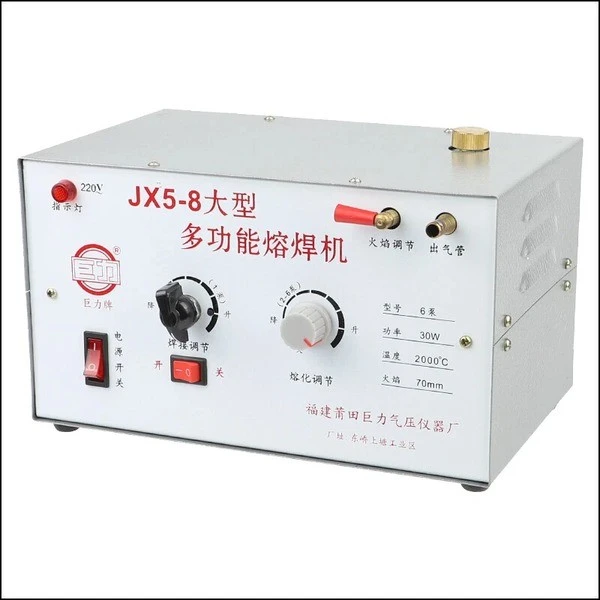

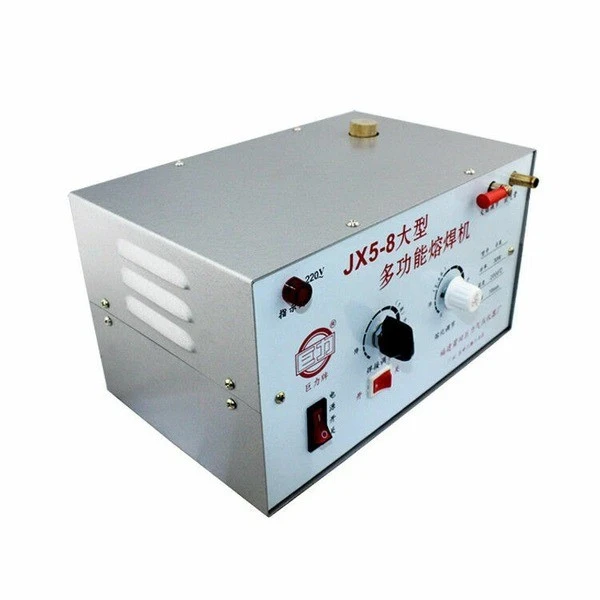

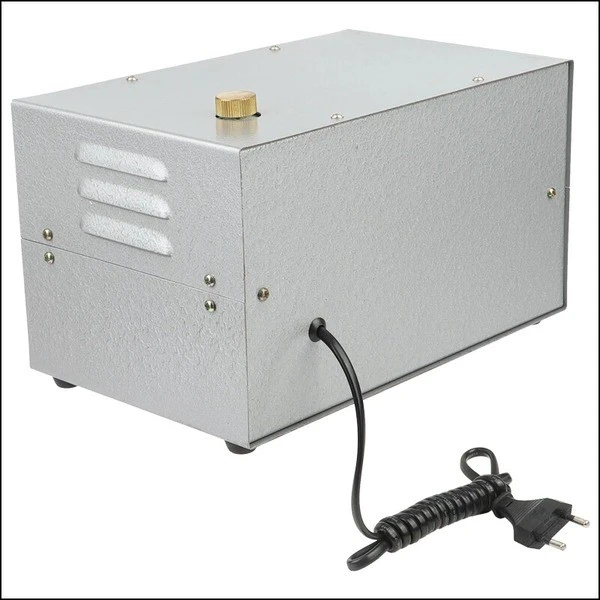

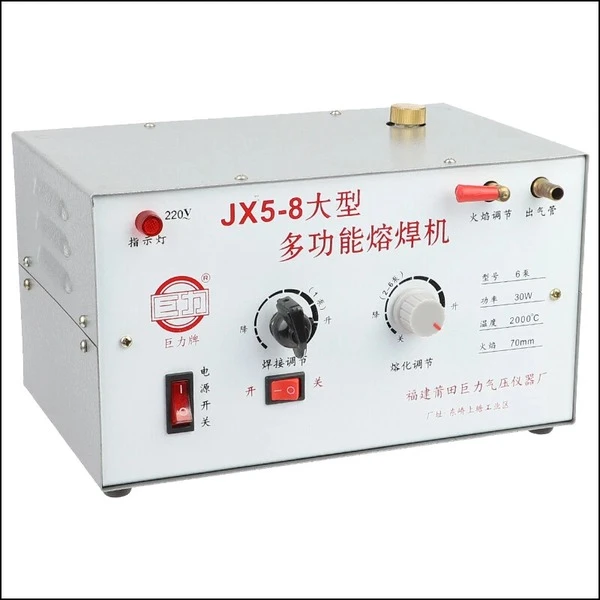

Product Details

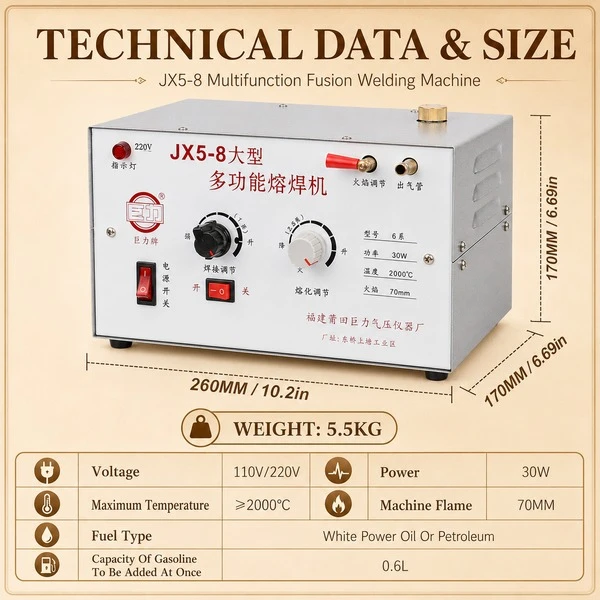

Detail images identify the JX5-8 by its 5.5 kg weight, 0.6 L fuel capacity, 260 x 170 x 180 mm size, and 70 mm flame.
Included parts shown: welder, manual, suction pipe, oil bottle, flintlock, funnels, toolkit, and oil pipe.
Accessories & B2B Service
For distributors, present JX5-8 as the higher-temperature bench model for workshops that want more fuel volume.
Dealer packs may add fuel notes, accessory checks, labels, and JX5-8 listing data.
FAQ
Q: What heat level does JX5-8 show?
A: Its detail image shows a temperature rating above 2000°C.
Q: How large is the fuel chamber?
A: The gasoline capacity is listed as 0.6 L.
Q: Which fuel is specified?
A: The image specifies white power oil or petroleum.
Q: Are corrosive additives allowed?
A: No. Acid and alkali must stay out of the fuel.
Q: What makes JX5-8 the larger option?
A: It has the larger body, 5.5 kg weight, above 2000°C rating, and 70 mm flame.
B2B Inquiry Call-to-Action
Send the target model name, order quantity, packing preference, and destination country. We will prepare a practical quotation and product information package for jewelry-tool distribution, workshop supply, or online B2B sales.
