Product Introduction
The main difference from the basic digital model is process automation. A five-stage segmented controller lets the operator arrange heating and holding steps for wax removal, plaster mold baking, and flask conditioning before casting. This reduces manual adjustment during longer burnout runs.
The hardware also supports real burnout work. The independent top exhaust pipe helps guide fumes away from the chamber area, while the lower wax drain and collection drawer handle melted wax residue during the cycle. These structures should be highlighted clearly for overseas B2B buyers.
Position this model for small jewelry studios, dental investment users, training centers, and stable light production workshops that repeat similar flask schedules. It is not simply a warming oven; it is the professional single-program option for routine lost-wax preparation.
- Important Usage Note: This programmable furnace is for wax burnout, mold baking, flask preheating, and lost-wax casting preparation. It is not a direct metal melting furnace.
Product Parameters
|
Parameter |
Specification |
|
Product Name |
Programmable Jewelry Burnout Furnace |
|
Main Use |
Wax burnout, flask preheating, plaster mold baking, lost wax casting preparation |
|
Maximum Temperature |
800C |
|
Heating Power |
1500W |
|
Voltage Options |
110V / 220V, 50Hz / 60Hz |
|
Control System |
5-stage segmented / programmable digital temperature control |
|
Heating Method |
Resistance wire heating |
|
Furnace Lining |
High-temperature insulating lining |
|
Chamber Size |
150 x 150 x 200 mm / 5.91 x 5.91 x 7.87 in |
|
Recommended Flask Clearance |
Up to approx. 3.5 x 7 in; confirm clearance before use |
|
Machine Dimensions |
Approx. 410 x 330 x 425 mm / 16.14 x 12.99 x 16.73 in |
|
Weight |
Approx. 16.5 kg / 36.38 lbs |
|
Included Accessory Set |
Heat-resistant gloves, power cable, flask tongs, product manual |
|
B2B Customization |
Voltage, plug, logo, packaging, accessory set |
Key Features & Advantages
Use Limitation
This furnace is not for direct metal melting, steel heat treatment, ceramic firing above the listed range, hazardous materials, or large industrial continuous production.
01
Five-Stage Digital Program
The segmented controller supports staged ramping and holding, helping users build a repeatable burnout curve for common investment molds.
02
Top Exhaust Pipe
The upper vent structure is designed for burnout gas discharge when the furnace is used with suitable workshop ventilation.
03
Wax Drain and Collection Drawer
Melted wax can flow out through the drain path and into the tray, reducing residue buildup and making batch cleanup more manageable.
04
Professional 800C Burnout Range
The 800C maximum temperature, 1500W resistance wire heating, and insulated chamber support mold baking and pre-casting flask preparation.
05
Programmable Burnout Workflow
|
Burnout Stage |
B2B Description |
|
Five-stage heating setup |
Build staged ramping and holding steps for a repeatable lost-wax burnout process. |
|
Process tuning |
Adjust the schedule according to flask size, wax amount, investment material, and workshop routine. |
|
Wax residue collection |
Melted wax is guided through the drain area toward the collection tray for easier cleanup. |
|
Exhaust support |
Use the top air vent together with proper workshop ventilation for burnout gas discharge. |
Suitable & Unsuitable Applications
|
Suitable Applications |
Not Suitable Applications |
|
Lost-wax burnout from investment molds; plaster mold baking; flask preheating before casting; jewelry schools; small and medium jewelry casting studios. |
Direct metal melting; industrial continuous kiln production; high-temperature ceramic firing; steel heat treatment; non-jewelry or hazardous-material burning. |
Product Details
Heating Chamber

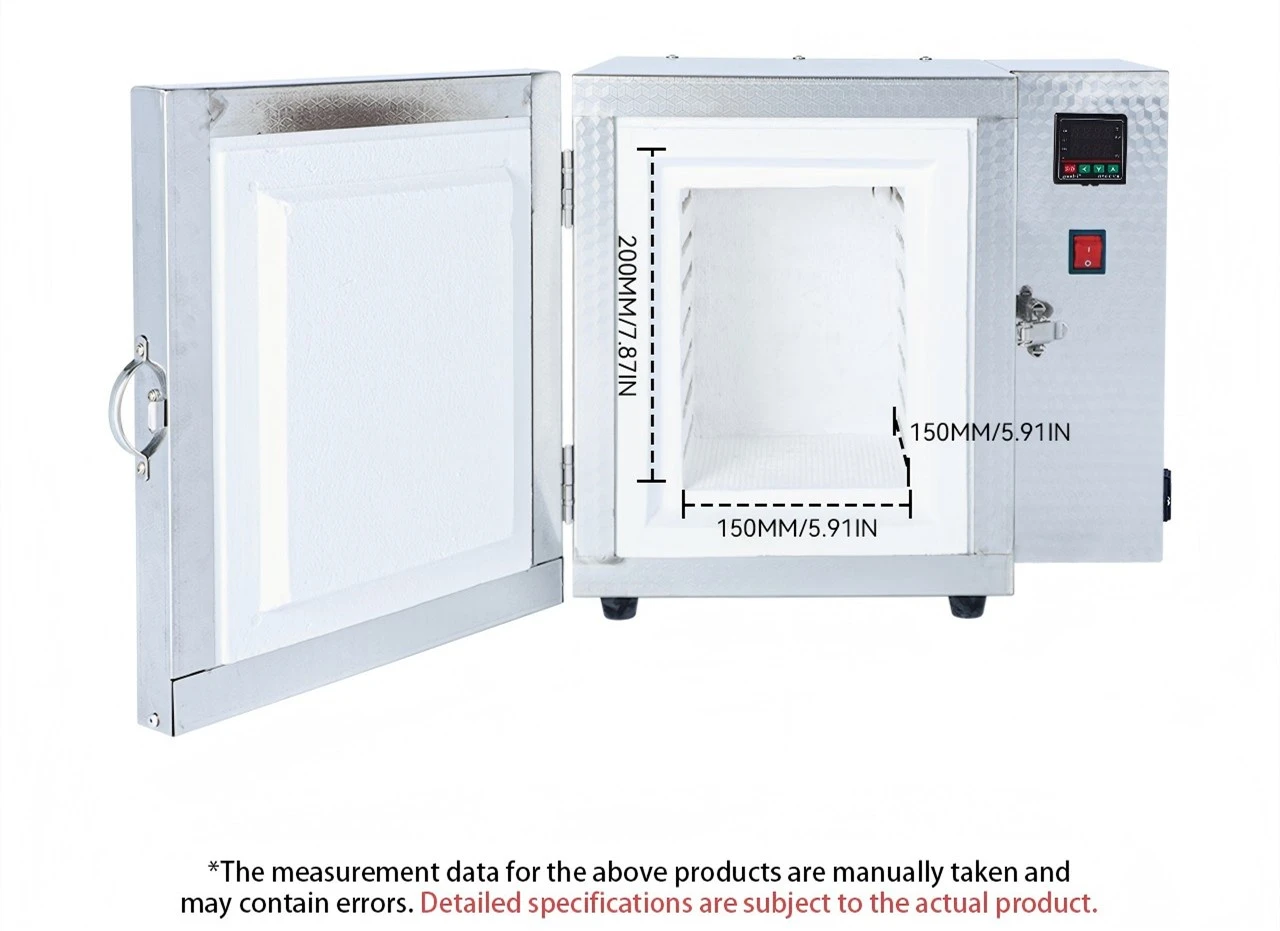

The 150 x 150 x 200 mm / 5.91 x 5.91 x 7.87 in chamber is sized for standard small jewelry flasks, with recommended flask use up to approx. 3.5 x 7 in after clearance is checked.
01
Programmable Control Panel
Users can prepare a staged burnout schedule instead of manually changing temperature throughout the cycle.
02

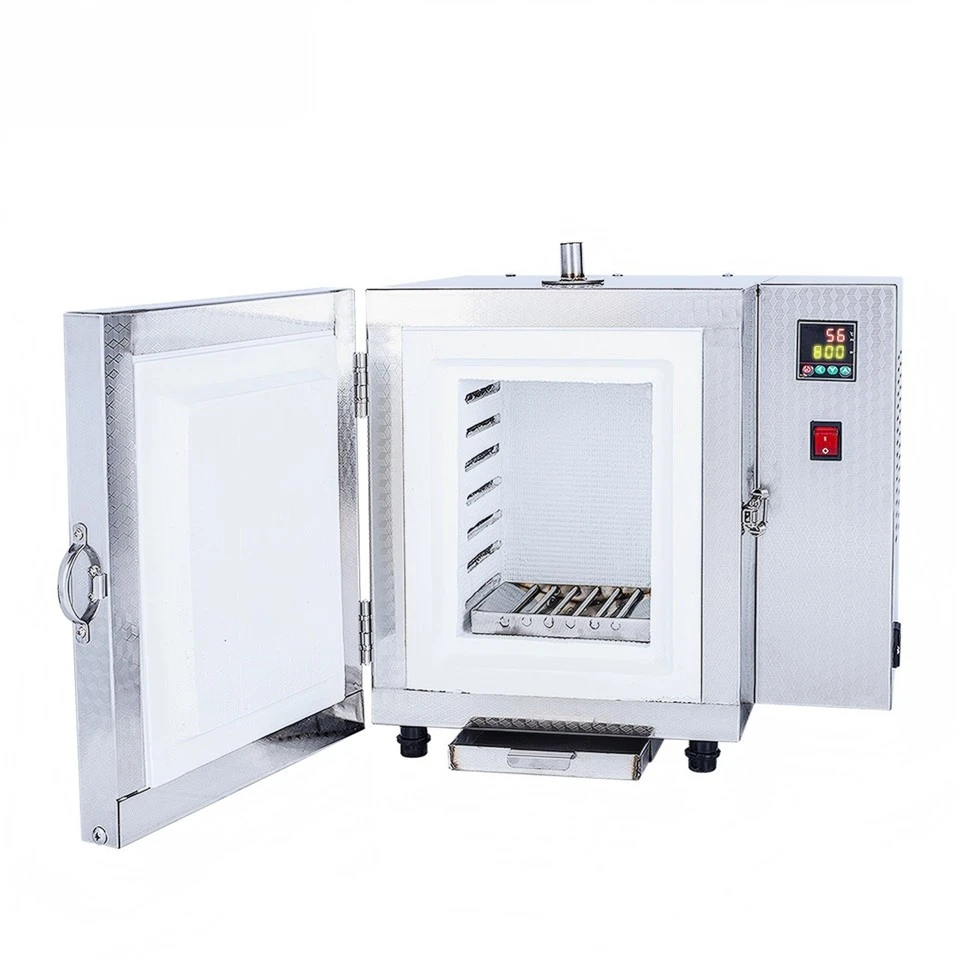

Wax Handling Area
The lower drawer collects wax residue after drainage, supporting cleaner repeated use in small workshops and classrooms.
03

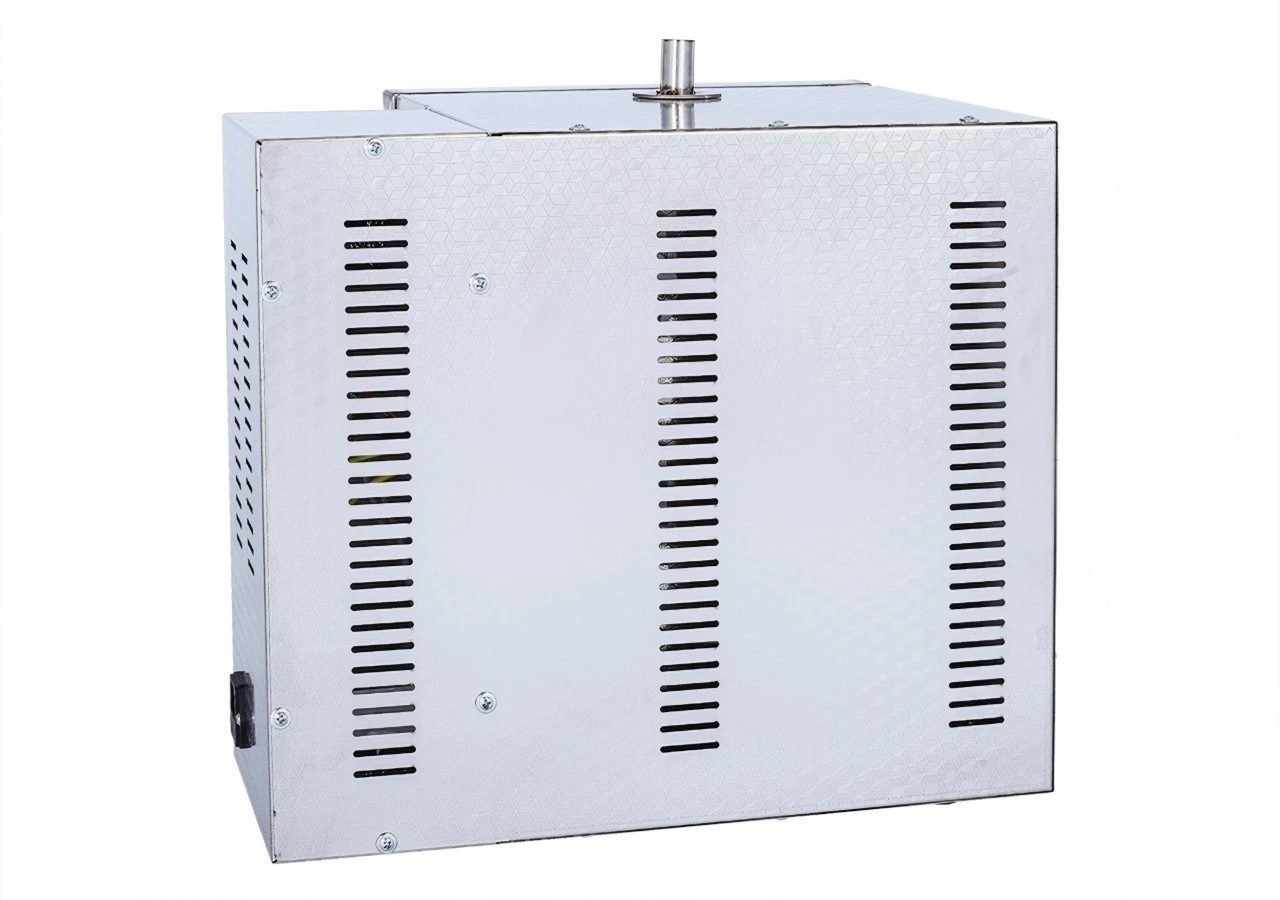

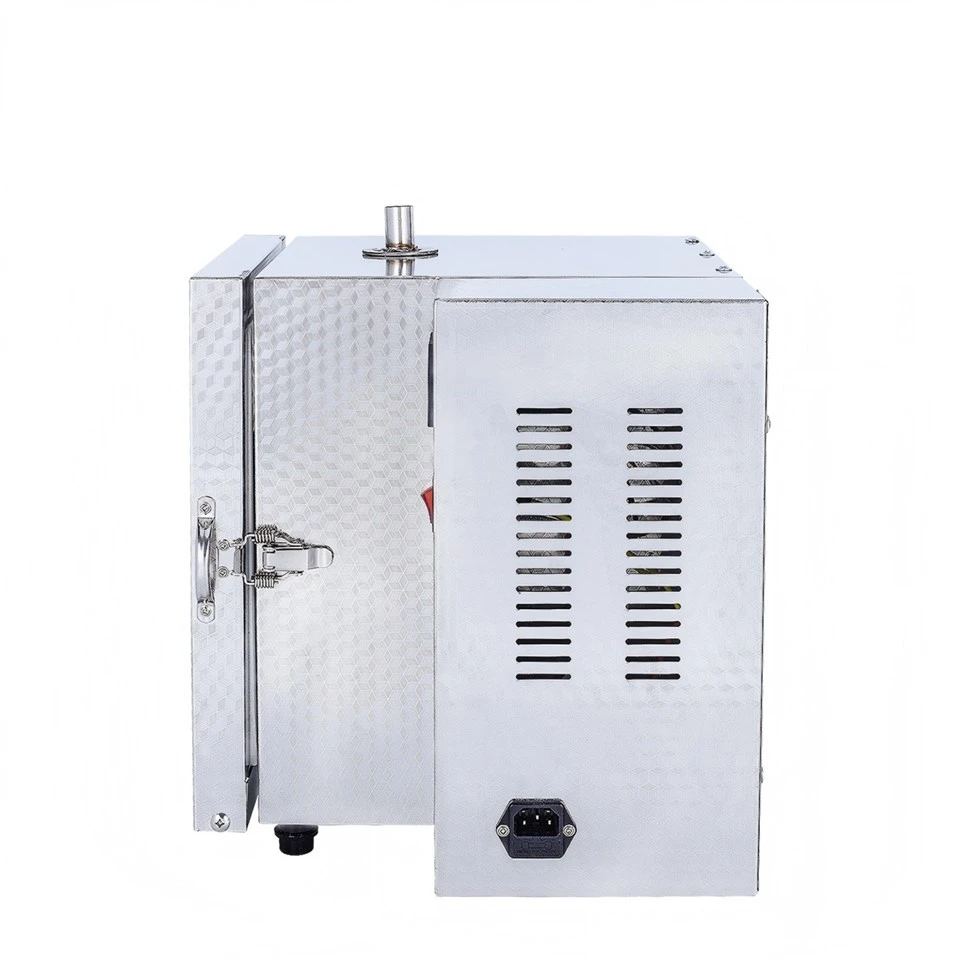

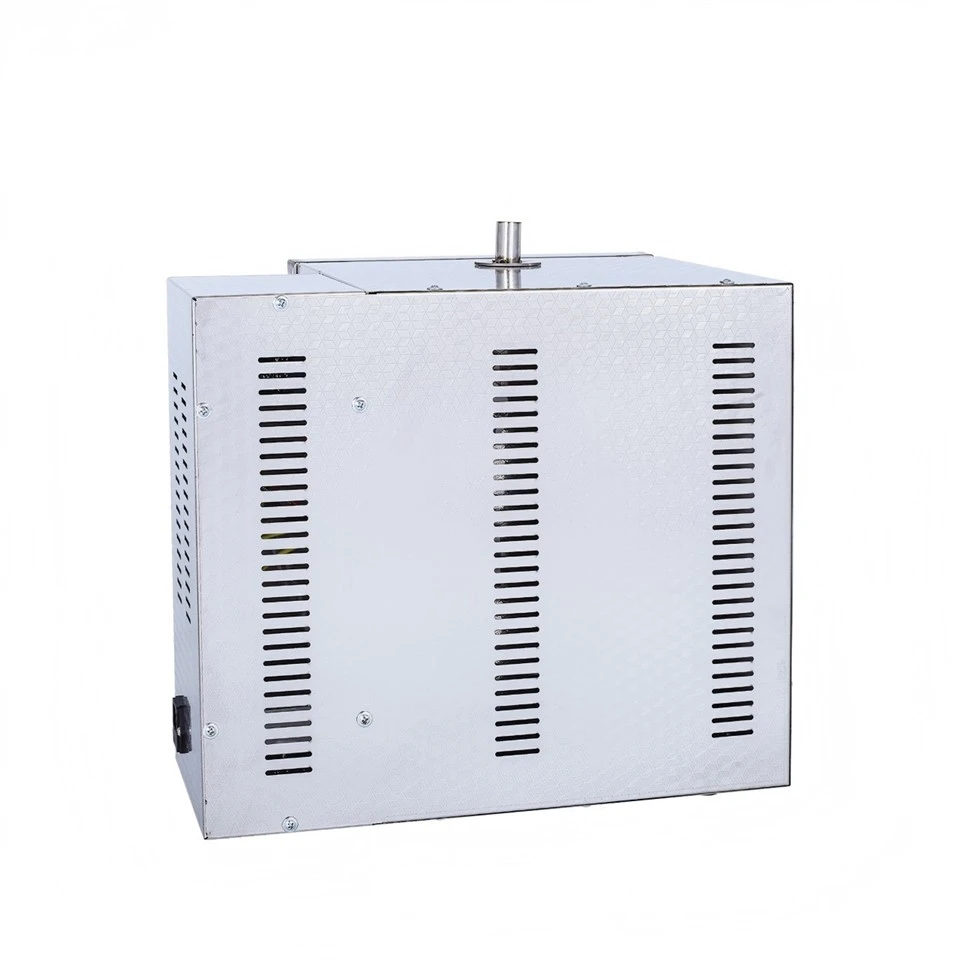

Exhaust and Housing
The exhaust pipe and ventilation layout distinguish this model from the entry-level digital preheating furnace.
04
Accessories & B2B Service
|
Service Item |
Details |
|

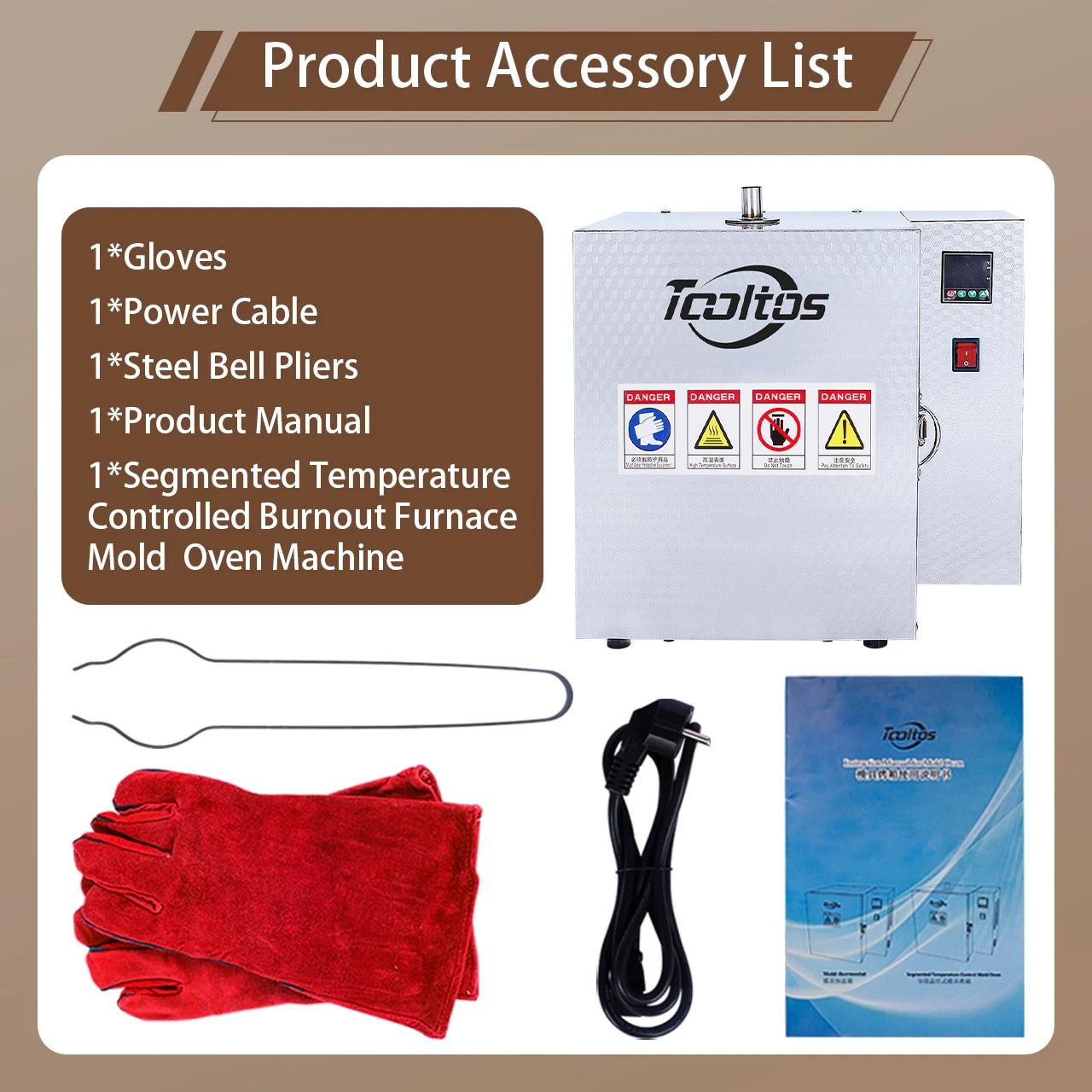

Standard Accessories |
Furnace unit, heat-resistant gloves, power cable, flask tongs, product manual. |
|
Private Label / Configuration |
Voltage, plug, logo, packaging, manual language, and accessory set can be arranged for qualified orders. |
|
Wholesale Support |
Bulk quotation, catalog, lead time, and shipping plan are available on request. |
|
Packaging & Service |
Protective export packaging, technical guidance, and spare parts assistance depend on order terms. |
FAQ
Q: What is this furnace mainly used for?
A: It is used for scheduled wax burnout, plaster mold baking, flask preheating, and lost-wax casting preparation.
Q: Can it melt metal?
A: No. It cannot directly melt gold, silver, or other metals. A separate jewelry melting furnace is required.
Q: What makes it different from the basic digital furnace?
A: It adds a five-stage segmented program, an independent top exhaust pipe, and a wax drain with collection drawer.
Q: What are the core chamber and machine dimensions?
A: The chamber is 150 x 150 x 200 mm, and the machine size is approx. 410 x 330 x 425 mm / 16.14 x 12.99 x 16.73 in.
B2B Inquiry Call-to-Action
Request a quote for a five-stage programmable burnout furnace, including voltage, plug type, logo option, packaging method, accessory set, manual language, and distributor order quantity.
