Product Introduction
This machine is suitable for small jewelry repair shops, beginner casting rooms, school training benches, and distributors building an economical furnace category. The operator sets the target temperature on the PID digital controller, places the prepared flask or mold in the ceramic-lined chamber, and uses the unit for preheating after the wax-removal step has already been handled elsewhere.
The key message is easy adoption. There is no multi-stage program to configure, no top exhaust pipe, and no wax-residue collection drawer. That makes the model easier for new users to understand, but it also means the product must be positioned honestly as a preheating and mold-preparation furnace.
For B2B pages, present this model as a cost-conscious choice for light-duty preparation work. Its value comes from the 800C heating range, 1500W compact heating body, 150 x 150 x 200 mm chamber, and small benchtop size rather than automated burnout control.
- Critical Positioning Note: This entry model is for fixed-temperature flask preheating after wax removal. It does not independently complete full investment-mold wax burnout and does not include a top exhaust pipe or wax collection tray.
Product Parameters
|
Parameter |
Specification |
|
Product Name |
Digital Burnout Furnace |
|
Main Use |
Fixed-temperature flask preheating, investment mold warming, jewelry casting preparation |
|
Maximum Temperature |
800C |
|
Heating Power |
1500W |
|
Controller Type |
PID digital temperature controller for direct fixed-temperature setting |
|
Heating Method |
Resistance wire heating |
|
Chamber Lining |
Insulated ceramic / silicon oxide lining |
|
Chamber Inner Size |
150 x 150 x 200 mm / 5.9 x 5.9 x 7.9 in |
|
Suggested Flask Clearance |
Up to approx. 4 x 7 in |
|
Machine Size |
Approx. 400 x 330 x 365 mm |
|
Machine Weight |
Approx. 15.5 kg |
|
Voltage |
110V / 220V, 50 / 60 Hz |
Key Features & Advantages
Use Limitation
This unit is not intended for direct metal melting, unattended heating, full wax elimination from investment molds, or heavy continuous burnout production. It also does not include a top exhaust system or wax collection tray.
Fixed-Temperature Preheating
The digital PID controller lets users set and monitor one working temperature, making the unit practical for simple flask warming and investment mold preparation.
1500W Compact Heating System
Resistance wire heating gives the small chamber a practical heat source while keeping the furnace suitable for benches, training rooms, and reseller starter bundles.
Insulated Heat-Retention Body
The ceramic / silicon oxide lining helps hold heat inside the 150 x 150 x 200 mm chamber and supports repeated light preparation cycles.
Entry-Level Workflow
Operators can learn the heating process quickly because there is no stored program sequence, exhaust pipe setup, or removable wax drawer to manage.
Small-Workshop Fit
The approx. 400 x 330 x 365 mm body and approx. 15.5 kg weight are suitable for compact workspaces and overseas distributor catalogs.
Digital Furnace Preheating Workflow
|
Process Step |
B2B Description |
|
Set fixed temperature |
Use the PID controller to choose the required preheating temperature; no multi-stage program is stored. |
|
Preheat prepared flask |
Place flasks into the chamber after wax removal has been completed by another suitable process. |
|
Hold heat |
The ceramic / silicon oxide lining helps maintain the chamber temperature for light-duty preparation work. |
|
Cooling and removal |
Let the furnace cool and handle flasks with gloves or tongs; never leave high-temperature operation unattended. |
Suitable & Unsuitable Applications
|
Recommended Applications |
Restricted / Forbidden Uses |
|
Fixed-temperature flask preheating; investment mold warming; small jewelry heat treatment; teaching practice; starter casting-room setup. |
Direct metal melting; complete wax burnout from investment molds; large continuous production; unattended operation; applications requiring top exhaust, wax drawer, or observation window. |

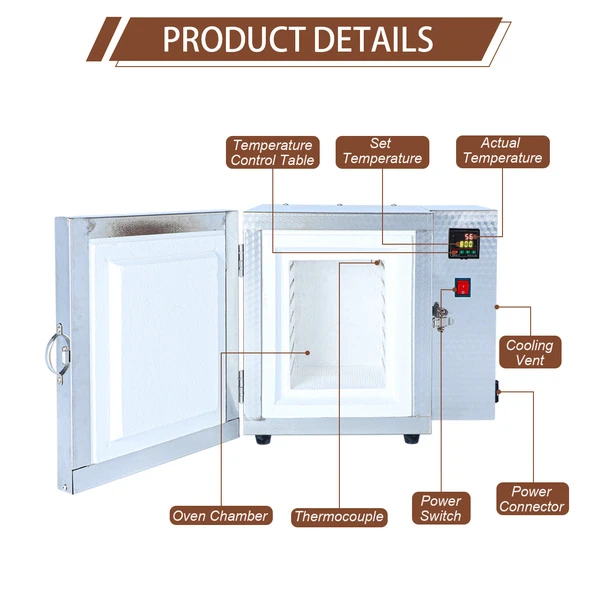

Product Details
Chamber and Flask Fit
The inner chamber measures approx. 150 x 150 x 200 mm / 5.9 x 5.9 x 7.9 in and is recommended for flasks up to about 4 x 7 in when clearance is confirmed.
Digital Control Panel
The front PID controller supports direct temperature setting and clear reading for users who need a simple preheating process.
Body and Ventilation
Rear heat dissipation helps the benchtop body operate with proper surrounding clearance, but this model does not provide a top exhaust pipe for burnout fumes.
Accessory Setup
The order configuration may include the furnace unit, power cable, heat-resistant gloves, and flask tongs. Voltage, plug, packaging, and accessory bundle should be confirmed before quotation.
Accessories & B2B Service
|
B2B Item |
Details |
|
Standard Accessories |
Furnace unit, power cable, heat-resistant gloves, and flask tongs depending on final order configuration. |
|
Voltage Options |
Confirm 110V or 220V requirement before ordering. |
|
Customization Support |
Logo, plug type, packaging, voltage configuration, and accessory bundle can be discussed for B2B orders. |
|
Buyer Confirmation |
Confirm chamber size, voltage, plug type, destination country, and quantity before quotation. |
FAQ
Q: Is this model a full wax burnout furnace?
A: No. It is a fixed-temperature digital preheating furnace. It does not include a top exhaust pipe or wax collection drawer for complete lost-wax burnout.
Q: What buyers are best matched to this unit?
A: It fits beginner jewelry studios, school practice rooms, small repair counters, and B2B distributors needing an economical starter furnace.
Q: What is the main working temperature specification?
A: The listed maximum temperature is 800C, with 1500W heating power and PID digital temperature control.
Q: Can it melt gold, silver, or other metals?
A: No. All three furnace models in this range are for mold preparation or burnout work, not direct metal melting.
Q: What chamber and flask sizes should be checked?
A: The inner chamber is approx. 150 x 150 x 200 mm, and the suggested flask size is up to approx. 4 x 7 in with clearance confirmed.
Q: What voltage options are available?
A: The specification lists 110V / 220V, 50 / 60 Hz. Buyers should confirm voltage and plug type before ordering.
Q: What can be customized for wholesale orders?
A: Logo, plug type, packaging, voltage configuration, and accessory set can be discussed for qualified B2B orders.
Q: What should not be promised on the sales page?
A: Do not describe it as a full wax burnout kiln, a metal melting furnace, or a furnace with exhaust and wax-drain hardware.
B2B Inquiry Call-To-Action
Request a quote for an entry-level digital preheating furnace, including voltage, plug, compact packaging, accessory configuration, spare parts needs, and reseller branding requirements.
