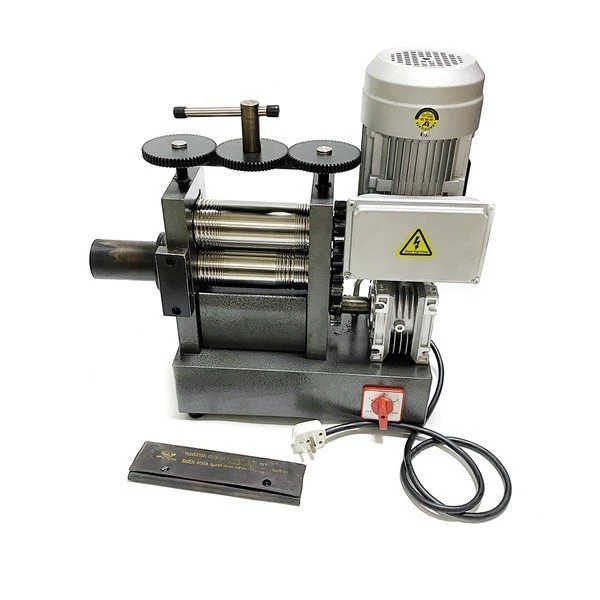

750W Electric Combination Rolling Mill with Round Grooves and Drawbench

The 750W Electric Combination Rolling Mill With Round Grooves And Drawbench is the broader-capability model for studios that need profile rolling and wire drawing in one purchase. It covers flat sheet, square wire, half-round wire, round wire, and drawplate work.

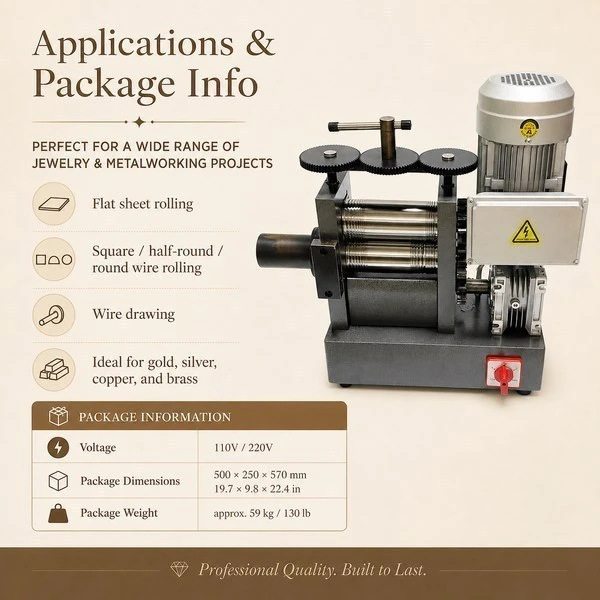

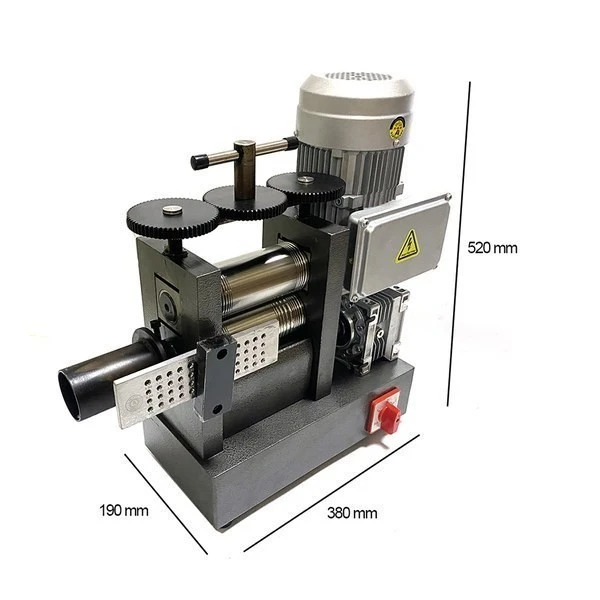

The detail image confirms a 750W motor, 160mm roller width, 70mm roller diameter, 6mm maximum opening, 53mm flat rolling area, and a 380 x 190 x 520mm body. The reference link adds the missing package and drawplate data: tungsten carbide square drawplates, 0.55-3mm hole range, 500 x 250 x 570mm package size, and approximately 59kg package weight.

Compared with Product 25, sell this as the round-groove and tungsten-carbide drawplate model for broader profile coverage.

Round Groove Upgrade: Round wire sizing is included together with flat, square, and half-round rolling functions.

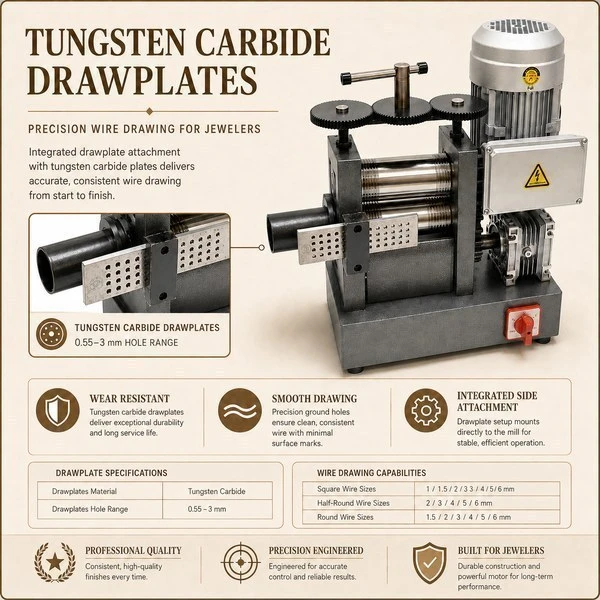

Tungsten Carbide Drawplates: The supplied square drawplates support wire drawing from 0.55 to 3mm with long-wear material.

4-in-1 Bench Coverage: One machine supports sheet rolling, multiple wire profiles, and wire drawing preparation.

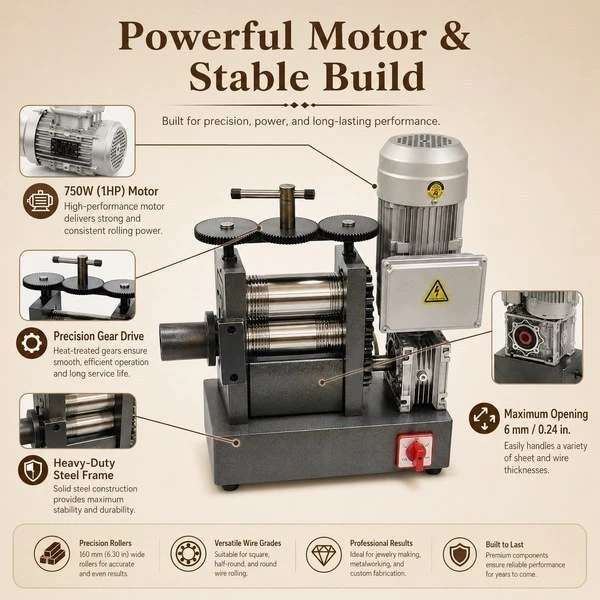

Stable 750W Platform: The electric motor and gear-driven body are intended for repeated jewelry workshop tasks.

1. Identify the required output: flat sheet, square wire, half-round wire, round wire, or drawplate sizing.

2. Prepare annealed non-ferrous metal and choose the roller zone or drawplate hole that matches the process.

3. Begin with a wide gap and light pressure. Use controlled passes to protect the motor and rollers.

4. For round wire, check the groove size after each pass. For drawplate work, pull from a larger hole toward the target size.

5. Stop before exceeding the 6mm opening, then clean grooves, rollers, drawplates, and adjustment areas.

Suitable for studios, training workshops, and distributors needing one product for sheet, square wire, half-round wire, round wire, and drawplate sizing.

Unsuitable for hardened steel, ferrous metals, hot rolling, direct melting, oversized stock, continuous industrial use, and fragile stone-set rings.

The sales message should show both round-groove rolling and the drawplate system. If round wire rolling is required, this model is the stronger match.

For B2B supply, confirm voltage market, packaging style, quantity, and whether catalog copy should emphasize 4-in-1 rolling or wire drawing.

Position the package around the electric rolling mill and tungsten carbide square drawplate set. Keep the round-groove function visible so buyers do not confuse it with the drawbench-only version.

B2B support can include neutral packaging discussion, voltage notes, English copy, carton information, and comparison text for distributors.

Send the target model name, voltage, order quantity, packing preference, and destination country. We will prepare a practical quotation and product information package for jewelry-tool distribution, workshop supply, or online B2B sales.
