Product Introduction
The Tall Mini Ball Vise sits between the small suction-base vise and the larger standard ball vise. It keeps a compact footprint but raises the clamping body for better access around small jewelry pieces.
It is designed for fine engraving, delicate positioning, and bench users who want more height without moving to a heavy standard vise.

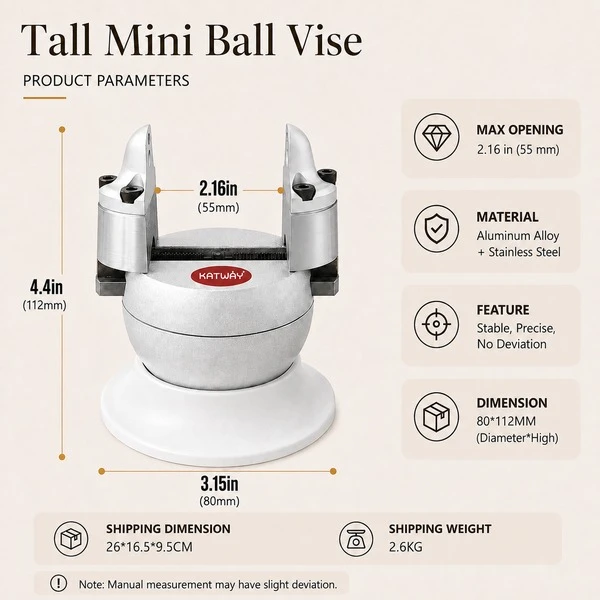

Product Parameters
|
Specification |
Details |
|
Max Opening |
2.16 in / 55 mm |
|
Material |
Aluminum alloy + stainless steel |
|
Dimensions |
80 x 112 mm |
|
Shipping Dimensions |
26 x 16.5 x 9.5 cm |
|
Shipping Weight |
2.6 kg |
|
Main Feature |
Stable, precise, no deviation |
Key Features & Advantages
80 x 112 mm body gives more height than the 80 x 80 mm mini vise.
55 mm max opening supports small rings and jewelry parts.
Aluminum alloy with stainless steel offers a light but firm structure.
Coaxial control jaws help keep the workpiece centered.
Raised Mini Centering Workflow
Choose the accessory that fits the ring or small component.
Seat the part in the jaws and tighten gradually to avoid marking the surface.
Tilt or rotate the ball body until the tool path is comfortable.
Release slowly and organize the small accessory pieces after use.
Suitable & Unsuitable Applications
Good for fine engraving, small stone-setting preparation, jewelry repair teaching, and precise mini-bench holding.
Avoid oversized pieces, machine pressure, aggressive impact, and fragile stones without a protective setup.
Product Details
The tall mini design is about access and precision rather than maximum weight. It is more specialized than the low mini vise.
The product image lists stable, precise, no deviation as its key feature, matching centered small-part work.
Its selling point is the raised 112 mm format: compact enough for a small bench, yet taller for hand-tool clearance around rings.
Accessories & B2B Service

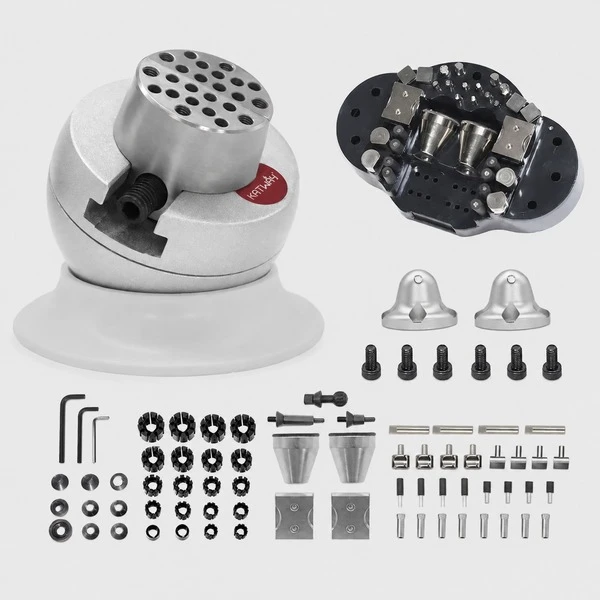

Package content includes the raised mini vise with matching clamps, cones, pins, screws, pads, and control accessories.
Bulk supply can use neutral outer packing, model labels, instruction inserts, and listing material for this raised mini style. Promote it as the compact raised option for jewelers who want more clearance than the low mini body.
FAQ
Q: Which body dimension appears?
A: The parameter image lists 80 x 112 mm.
Q: How much can the jaws open?
A: The opening is 2.16 in / 55 mm.
Q: Which materials are named?
A: Aluminum alloy and stainless steel.
Q: What separates it from the low mini?
A: It has a taller body, 55 mm opening, and 2.6 kg shipping weight.
Q: May it work as a press?
A: No. It is a manual jewelry holder.
